How do I know if my ignition coil is bad?

If you have verified the spark plug is good and the kill wire is disconnected, but you still have no spark, the coil is likely faulty.

Is it worth rebuilding the carburetor or should I replace it?

For the GXV160, a thorough cleaning is usually sufficient. Only replace the carburetor if the body is physically cracked or the throttle shaft is excessively worn.

Lil Engine

Flowcharts Blog My Garage

Home Small EnginesHonda GXV160 Cranks But Won't Start — Fuel & Spark Fix

Small Engines 2 views

Honda GXV160 Cranks But Won't Start — Fuel & Spark Fix

⚡ Quick Answer

If your Honda GXV160 cranks but won't fire, the issue is almost certainly a fuel delivery blockage or a fouled spark plug. Start by performing a 'spray test' by injecting a small amount of carburetor cleaner into the intake; if it fires briefly, you have a confirmed fuel starvation issue. Focus your efforts on cleaning the pilot jet and main jet, as these are the most common failure points on this commercial-grade engine.

What do you want to do?

Most Likely Cause

Clogged Pilot Jet

The GXV160 carburetor has a very small pilot jet that is highly susceptible to varnish buildup from stale fuel. If the engine cranks but won't start or surges, this jet is likely blocked. You must remove the carburetor bowl and use a thin wire or specialized cleaning tool to clear the orifice.

Start here — this is the most common reason for this symptom.

Before You Buy Parts

Quick, free inspections — check these first. Most repairs don't actually need replacement parts.

Battery fully charged

Fuel is fresh (under 30 days old)

Fuel shutoff valve open

Spark plug inspected

Air filter checked

Safety switches engaged

Oil level verified

Kill switch in RUN position

Complete Resource Guide

Complete Small Engines Troubleshooting Guide

Brand Resource Hub

The Ultimate Honda Small Engine Repair & Service Hub

#44in Small Engines

3community tips

Repair Overview

Difficulty

Intermediate

Est. Repair Time

45–90 minutes

Est. Parts Cost

$10–$40

Tools You'll Need

10mm socket Screwdriver set Needle-nose pliers Multimeter Feeler gauge Carburetor cleaning wire set

First Checks — Start Here

1Check for spark: Remove plug, ground to engine block, pull recoil to verify blue spark.
2Verify fuel flow: Ensure fresh fuel is reaching the carburetor bowl.
3Spray test: Inject carb cleaner into the air intake and attempt to start.
4Inspect pilot jet: Remove the carburetor bowl and clean the pilot jet orifice.
5Check air filter: Ensure the element is not saturated with oil or debris.
6Verify kill switch: Ensure the ignition kill wire is not grounded out.

Safety Warnings

!Hold the plug with insulated pliers to avoid a high-voltage shock.
!Work in a well-ventilated area away from open flames.
!Wear safety glasses to protect against pressurized solvent spray.
!Ensure the spark plug wire is disconnected before adjusting the coil.
!Dispose of old gasoline at an approved hazardous waste facility.
!Forgetting to turn the fuel valve back on after cleaning the carburetor.
!Using a metal wire that is too thick, which can damage the precision-drilled jet orifices.
!Testing for spark while holding the plug wire with bare hands.

Always disconnect the spark plug, work in a well-ventilated area, and consult a professional if unsure.

Most Likely Causes

Ranked by likelihood — tap each to see diagnosis details.

A carbon-fouled plug will prevent ignition even if the coil is healthy. Check the plug for heavy deposits or a wet, fuel-soaked tip. Replace with a standard NGK plug and ensure the gap is set to 0.028–0.031 inches.

🔧 Step-by-Step Fix Guide

Spark Test

Remove the spark plug and reconnect it to the plug wire. Hold the threaded portion of the plug firmly against a clean, unpainted metal part of the engine block. Pull the recoil starter and observe the spark; it should be bright blue. A weak yellow or orange spark indicates a failing coil or bad plug wire.

Hold the plug with insulated pliers to avoid a high-voltage shock.

Carburetor Bowl Inspection

Shut off the fuel valve and remove the 10mm bolt at the bottom of the carburetor bowl. Carefully lower the bowl to avoid damaging the O-ring. Inspect the bottom for sediment or water; if present, clean the bowl thoroughly with carburetor cleaner.

Work in a well-ventilated area away from open flames.

Cleaning the Jets

With the bowl removed, locate the main jet and pilot jet. Use a carburetor cleaning kit to clear the passages. Ensure the air path to the pilot jet is clear, as this is the most common cause of starting failure on the GXV160.

Wear safety glasses to protect against pressurized solvent spray.

Ignition Coil Air Gap Adjustment

If you replace the coil, the air gap between the coil laminations and the flywheel magnets is critical. Set the gap to 0.4mm (0.016 inches) using a feeler gauge. Tighten the mounting bolts securely to ensure the gap does not shift during operation.

Ensure the spark plug wire is disconnected before adjusting the coil.

Fuel System Flush

If the fuel in the tank is old, drain it completely. Flush the fuel line from the tank to the carburetor to ensure no debris is trapped in the fuel filter or shut-off valve. Refill with fresh fuel and a high-quality stabilizer.

Dispose of old gasoline at an approved hazardous waste facility.

What To Test Next

If fuel delivery checks out, the next thing to inspect is spark — remove the spark plug, ground its threads to the engine block, and crank the engine to look for a visible blue spark.

Component Reference

Carburetor & Fuel Intake

The carburetor mixes air and fuel for combustion. A clogged jet or stuck float is the #1 cause of small engine starting and surging problems.

Spark Plug & Ignition System

The spark plug ignites the air-fuel mixture. A fouled plug, wrong gap, or failing ignition coil will prevent the engine from firing.

Oil & Lubrication System

Regular oil changes are critical. Low or dirty oil causes engine wear, overheating, and eventual seizure. Check the dipstick before every season.

Air Filter & Intake

A clogged air filter starves the engine of air, causing rich running, power loss, and hard starting. Inspect and clean or replace it each season.

Photos for educational reference. Actual parts may vary by make and model.

Common Mistakes to Avoid

Forgetting to turn the fuel valve back on after cleaning the carburetor.

Using a metal wire that is too thick, which can damage the precision-drilled jet orifices.

Over-tightening the carburetor bowl bolt, which can crack the bowl or damage the O-ring.

Testing for spark while holding the plug wire with bare hands.

If This Didn't Fix It

Still having trouble? These are the next things to check:

Compression test

Ignition timing

Valve clearance

Safety switch continuity

Carburetor blockage

Ignition coil

Get the Exact Parts for Your Machine

Tell us your equipment's year, make, and model — we'll search for parts that actually fit, not generic ones.

Finding parts for

Honda gxv160

Required Gear

Matched to your Honda gxv160 — click to find the exact fit on Amazon.

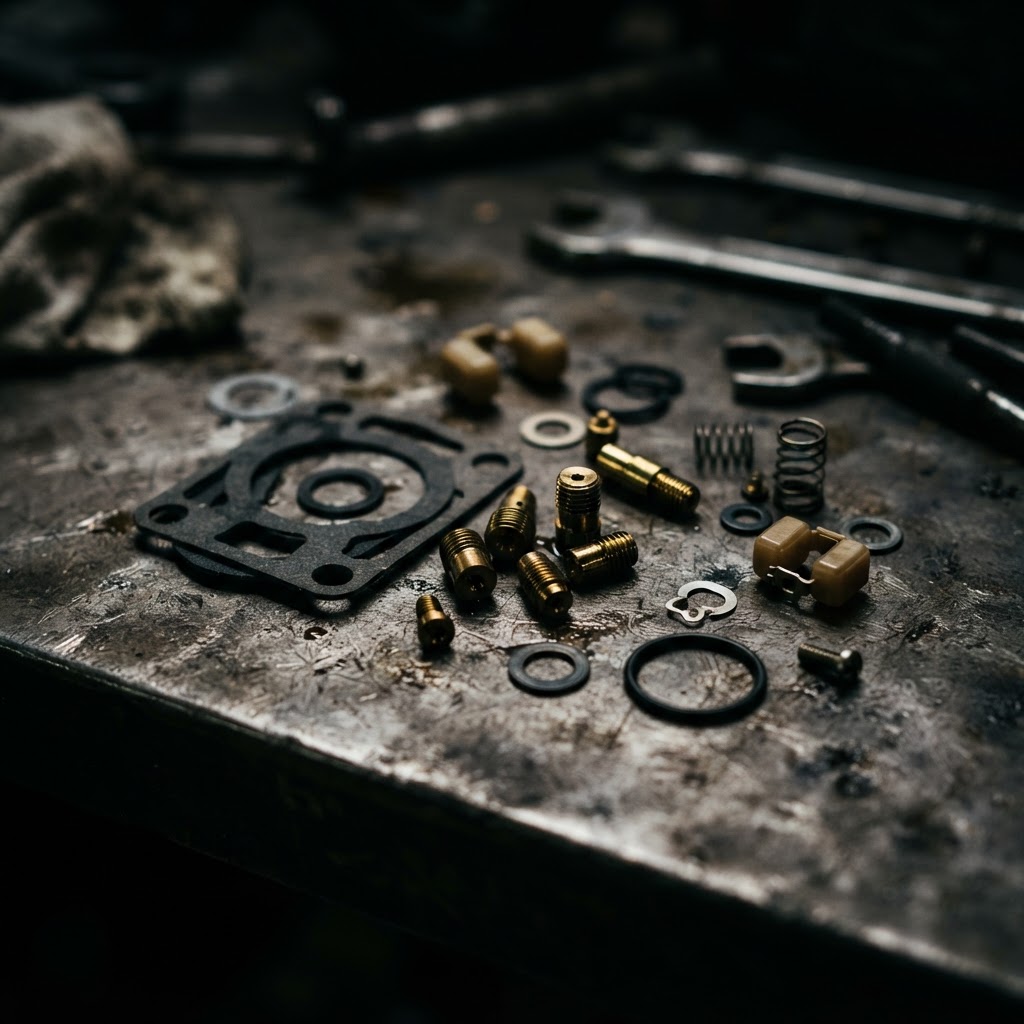

Carburetor Rebuild Kit

Includes new gaskets and jets necessary for a full restoration of fuel delivery. Look for kits specifically labeled for the Honda GXV160 to ensure jet sizes match.

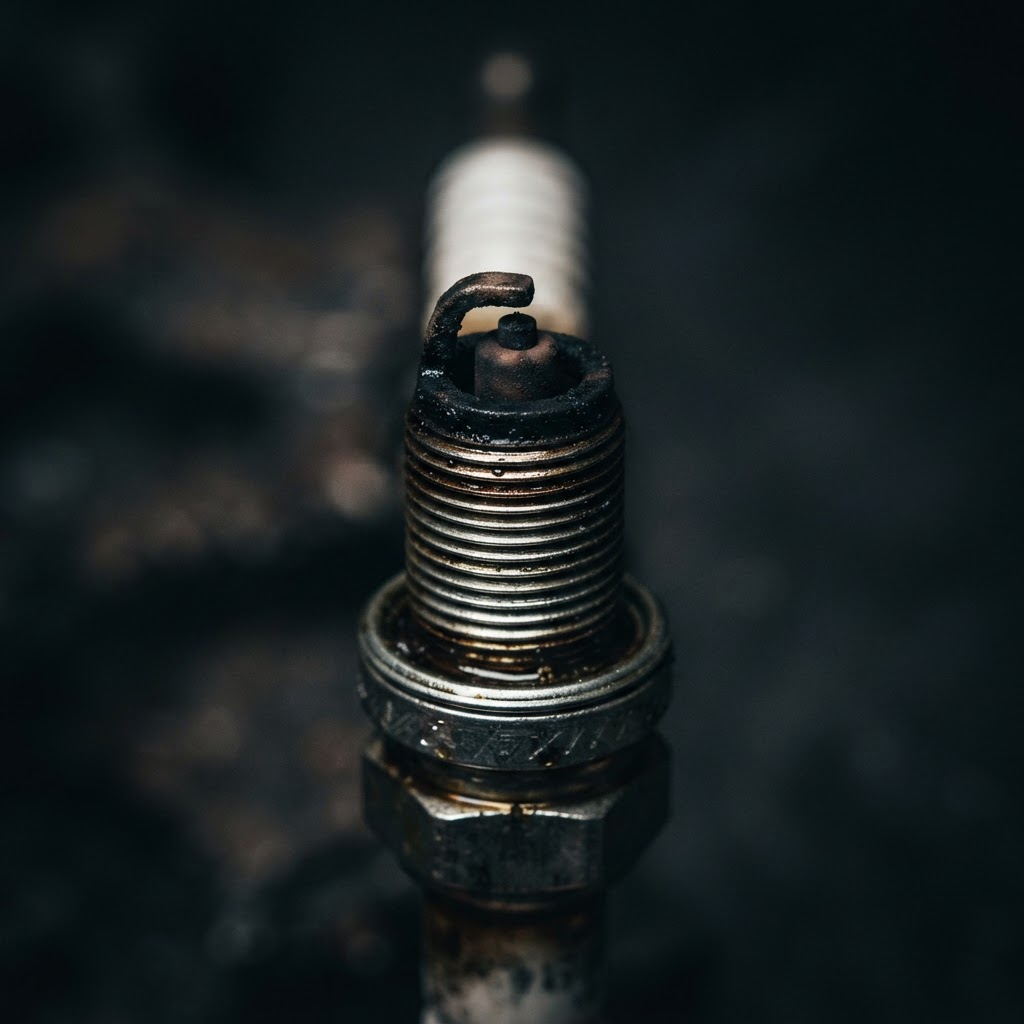

Spark Plug

Essential for reliable ignition; the GXV160 requires a specific heat range plug. Always verify the gap before installation.

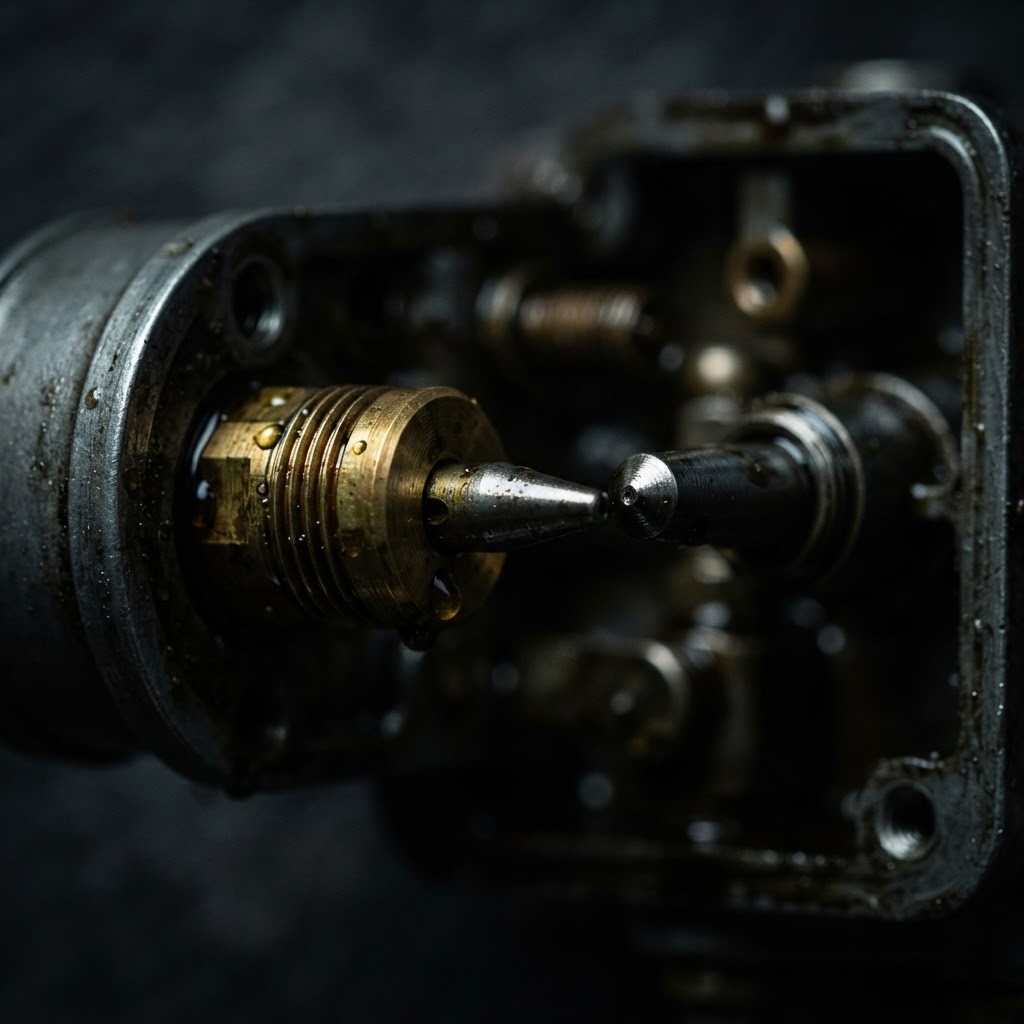

Carburetor Cleaner

High-pressure solvent spray used to dissolve varnish in the pilot and main jets. Essential for clearing internal passages without disassembly.

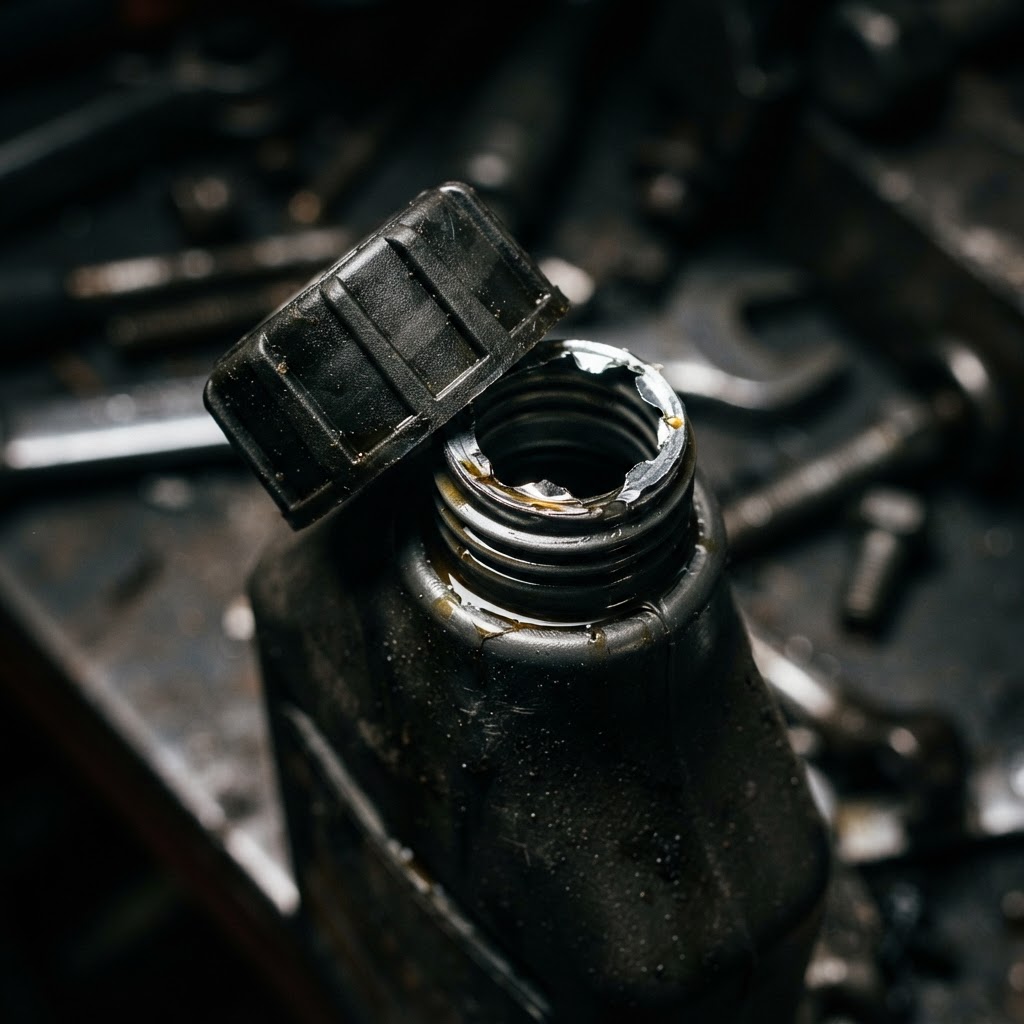

Fuel Stabilizer

Prevents fuel degradation during storage, which is the primary cause of GXV160 starting issues. Add to every fuel can.

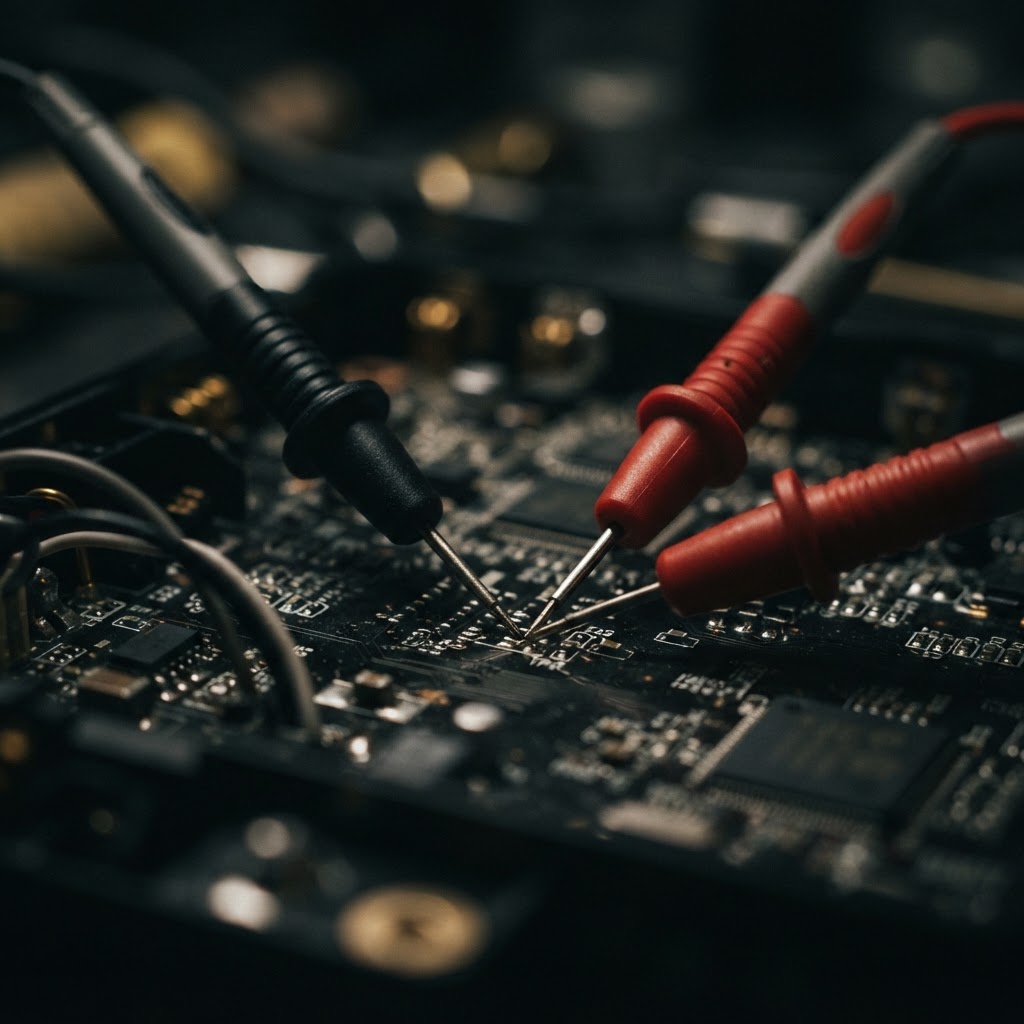

Multimeter

Required to test the ignition coil resistance and verify the kill switch circuit. A digital multimeter is standard for professional diagnostics.

Affiliate Disclosure: Lil Engine may earn commissions from qualifying purchases.

Pro Tips from the Community

Real-world fixes from Reddit, YouTube & forums.

"If the engine fires with starting fluid but dies immediately, the pilot jet is 100% the culprit. Don't waste time on the coil until the carb is spotless."

LawnSite.com Forum

"Always check the kill wire connection at the ignition switch. If the wire is pinched or grounded, you will have no spark regardless of how good the coil is."

YouTube comments

"The GXV160 is a commercial engine; if it's surging, check the governor spring tension. Sometimes a stretched spring causes hunting that mimics a fuel issue."

TractorByNet Forum

Prevent This From Coming Back

Use only fresh, non-ethanol gasoline.
Add fuel stabilizer to every gallon of gas purchased.
Run the engine until the carburetor is dry if storing for more than 30 days.
Replace the air filter annually to prevent engine breathing issues.
